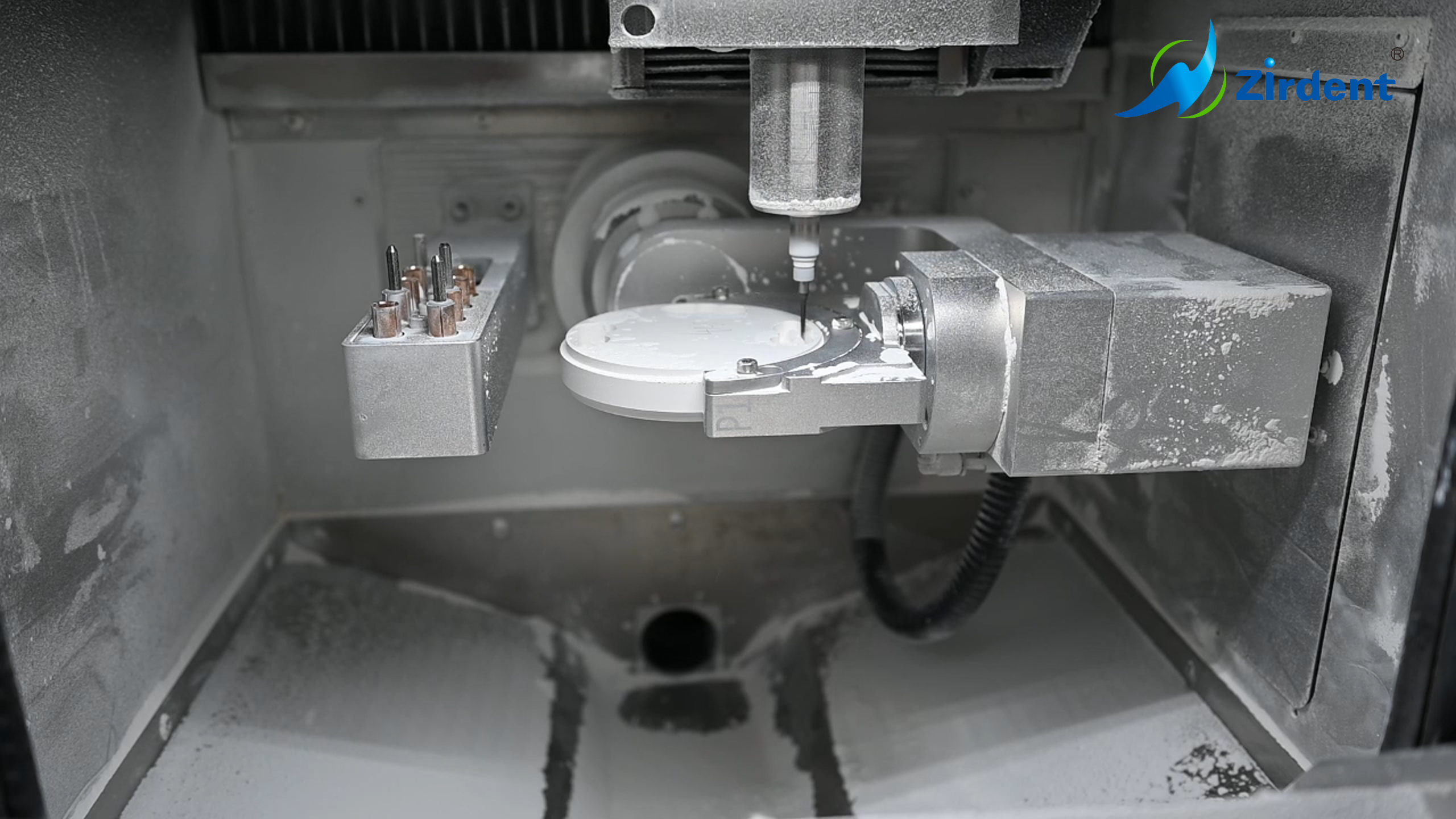

ZDA5 Pro Milling Machine
 |
ZDA5 Pro Milling Machine -5 Axis Automatic Disc Changer -Unattended, multi-materials blanks solution -Milling for Zirconia, Wax, PMMA, PEEK, Softwaremetal -High reliability and stability
|
|
|
-It has a calibration function, which can ensure the milling precision via calibration
and compensation for the milling deviation
-With a highly integrated 5-axis motion control system, intelligent and simple upper computer operation software |
|
|
-Realize the unattended all-day production and milling, which is for multiple
materials solution with 10 blanks available
-Worry free to load multiple tasks and mill continuously while picking and return the materials automatically
|
|
|
-High-precision linear motion assembly -Recover milling, Cleaning concept -Low-power electricity consumption plan -Support 90-degree milling -The external light bar indicates the working status: |
Technical Data
| Machine model | ZDA5-Pro |
| Dimension |
933×758×660(mm)
|
| Gross weight |
350Kg
|
|
Input voltage
|
AC 220V
|
|
Max power
|
3000W |
|
Spindle power
|
800W (max)
|
|
Axis quantity
|
5 |
|
Milling range
|
X/Y/Z:165.5/108/93mm
|
|
Milling angles
|
A:360° B:90°±30
|
|
Milling method
|
Dry milling
|
|
Max rotation speed
|
60,000rpm
|
|
Max feed rate |
3000mm/min |
|
Tools library
|
8 |
|
Blanks library
|
10 |
|
Tools changing method
|
Auto(airpressure>0.35MPa) |
|
Spindle cooling
|
Aircooling,airflow＞50L/min |
|
Milling materials
|
Zirconia,wax,PMMA,PEEK,softwaremetal |
|
Milling time
|
Coping:zirconiafor8mins,waxfor4.5 mins |
|
Milling time
|
Crown:zirconiafor12mins,waxfor5.5 mins |
|
Tools diameter
|
2+1+0.6+0.3 |
|
Blank size
|
Upto98x30mmroundblank |
|
Spindle chuck diameter
|
Φ4.0mm |
|
Supported CAM
|
WorkNC,Hyperdent,Millbox |
|
Data transmission
|
USB,LAN |
Dental Equipment
Optimize the grinding properties, long service life and maximum efficiency during grindering, polishing in your daily
time, micro fractures within the cad/cam substructure. Gentle and pressure-free grinding allows perfect finishing and
efficient removal of material.
