ZIRCONIACmill-A5 Pro Milling Machine
Wet cutting, long spindle life, and five-axis linkage.

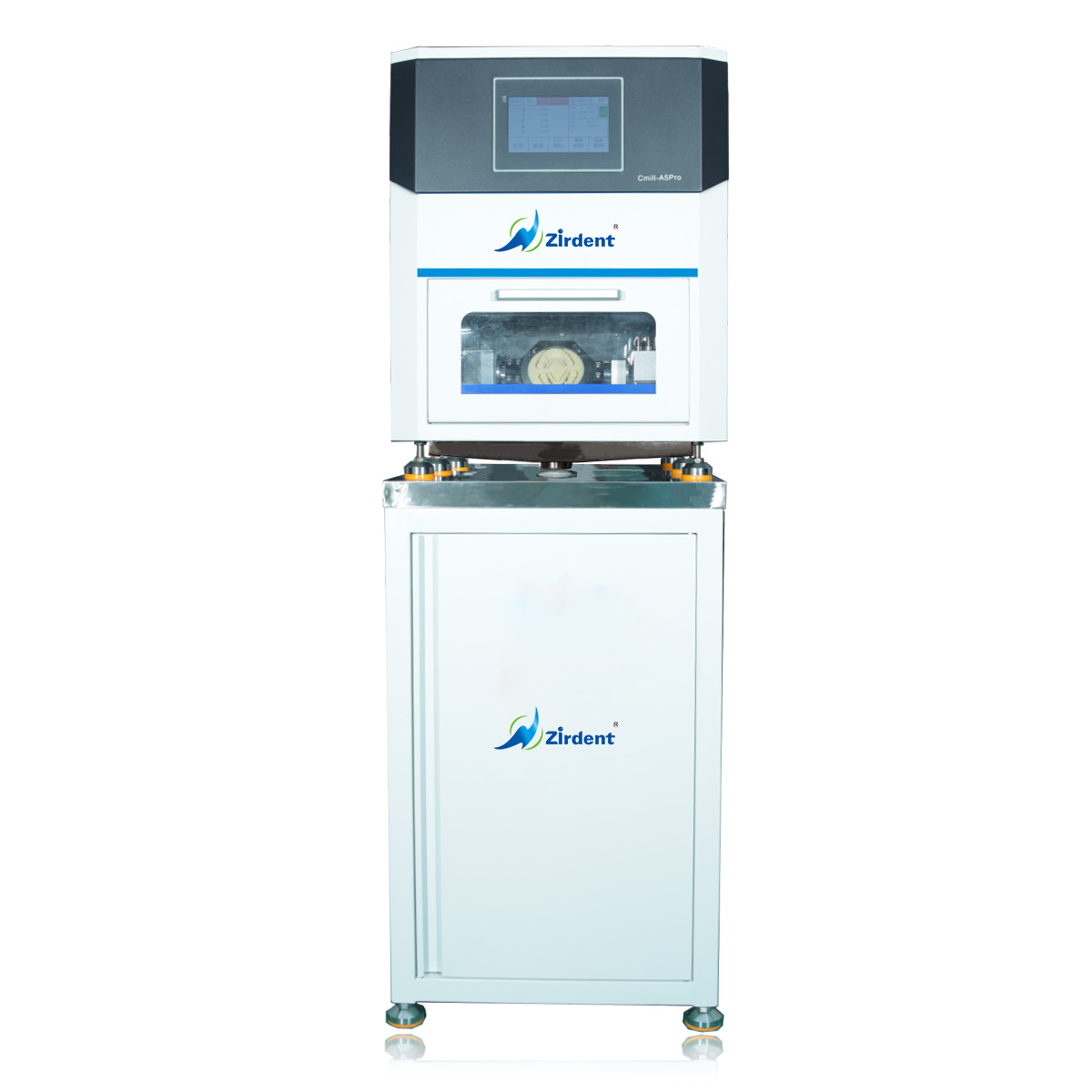

Cmill-A5 Pro Milling Machine
With max. spindle speed 60,000 rpm, A5 Pro combines utmost precision with maximum stability and every indication can be treated – crowns and bridges, inlays, onlays and more for dental laboratories on same day dentistry.
60000RPM Maximum spindle speed
5-axis Five-axis simultaneous
machining
machining

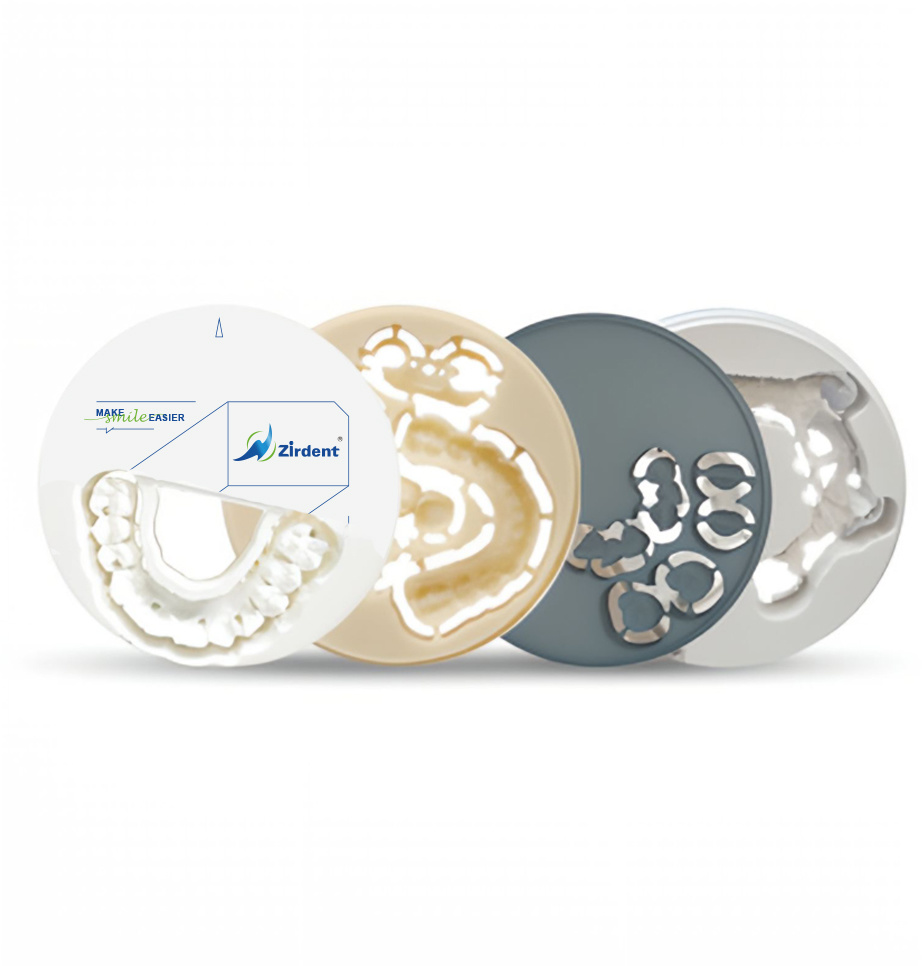

Available Material
Versatile material compatibility for a wide range of dental CAD/CAM applications
ZIRCONIA
Titanium base alloy
Preformed titanium column
PMMA
WAX
PMMADevice Parameters
Engineered for precision, efficiency, and reliable multi-material dental milling
Axis
5 Axis
Maximum spindle speed
60000r/min
Input voltage
One-way communication 220V
Operating power
3KW
Weight
110KG
External size
725mm*565mm*705mm
Cutting way
Wet milling
Processing range
A-axis:360° B-axis:±30°
Spindle cooling
Water cooling+Air cooling
Positioning accuracy
0.005mm
Tool numbers
15
Fixture
single disk φ98mm
premilled abutment:4 pieces
glass ceramic:4 pieces
premilled abutment:4 pieces
glass ceramic:4 pieces
Tool change
Automatic
Product type
coping/crown/bridge/inlay/
frameworks/veneers/onlay/abutment
malo bridge/bar
frameworks/veneers/onlay/abutment
malo bridge/bar
Processing materials
Average processing time
Average processing time
wax / zirconia / resin disk thickness 10-25mm / glass ceramic / Ti glass ceramic:20-40min / model:30-40min / zirconia:6-8min / Ti:15-30min / abutment:30min / partial removable / overpress / premilled abutment
